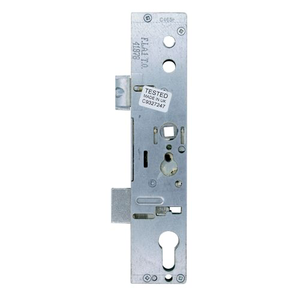

Lockmaster Genuine Gearbox - Lift Lever or Double Spindle
This Lockmaster gearbox is a genuine replacement for the gearboxes found on Lockmaster, Goldline and MilaMaster multipoint locks.
This gearbox is available with a 35mm backset or 45mm backset, features a latch and deadbolt and is unsprung.
There are versions for both double spindle (92/62PZ) and single spindle (92PZ only) available.
Operation: Lift lever or double spindle
Latch reversal: Undo the screw in the latch to remove. Reverse and reinsert then replace screw.
Specifications
- Case Height: 228mm
- Case Width: Backset + 16mm
- Centres: 92mm/62mm or 92mm only
- Backset: 35mm or 45mm
- Spindle: Single or Double 8mm
- Packaging: Supplied in singles
